Testing and Troubleshooting n8n Workflows

Troubleshooting n8n workflows starts with proving the outcome, not watching every node turn green. A workflow can finish successfully and still update the wrong row, send the same message twice, accept invalid data, or produce a confident AI answer with no evidence.

This guide gives you a repeatable method for testing ordinary workflows and AI workflows. You will learn how to isolate the first wrong node, build a small test matrix, verify failure behavior, and define evidence that a production run actually did the right thing.

← Return to the complete n8n AI agents guide

Test five layers, in this order

Layer	Question	Evidence
Trigger	Did the expected real event start one execution?	Execution ID, trigger time, event ID
Data contract	Are required fields present, correctly named, and correctly typed?	Normalized JSON and validation result
Decision	Did the correct branch or tool run?	Condition values, branch item counts, tool log
Side effect	Was the correct external record changed exactly once?	External record ID and before/after state
Recovery	Can the workflow retry or escalate without losing or duplicating work?	Error route, retry count, deduplication key

Test the layers separately. If a webhook never started an execution, changing a downstream expression cannot help. If the correct JSON reached an If node but the wrong branch ran, do not debug the Gmail credential.

Use a known test record

Create one harmless record whose values and expected result you can calculate by hand:

{
  "eventId": "test_001",
  "customerId": "C1007",
  "email": "n8n-test@example.com",
  "monthlySpend": 120,
  "isActive": true
}

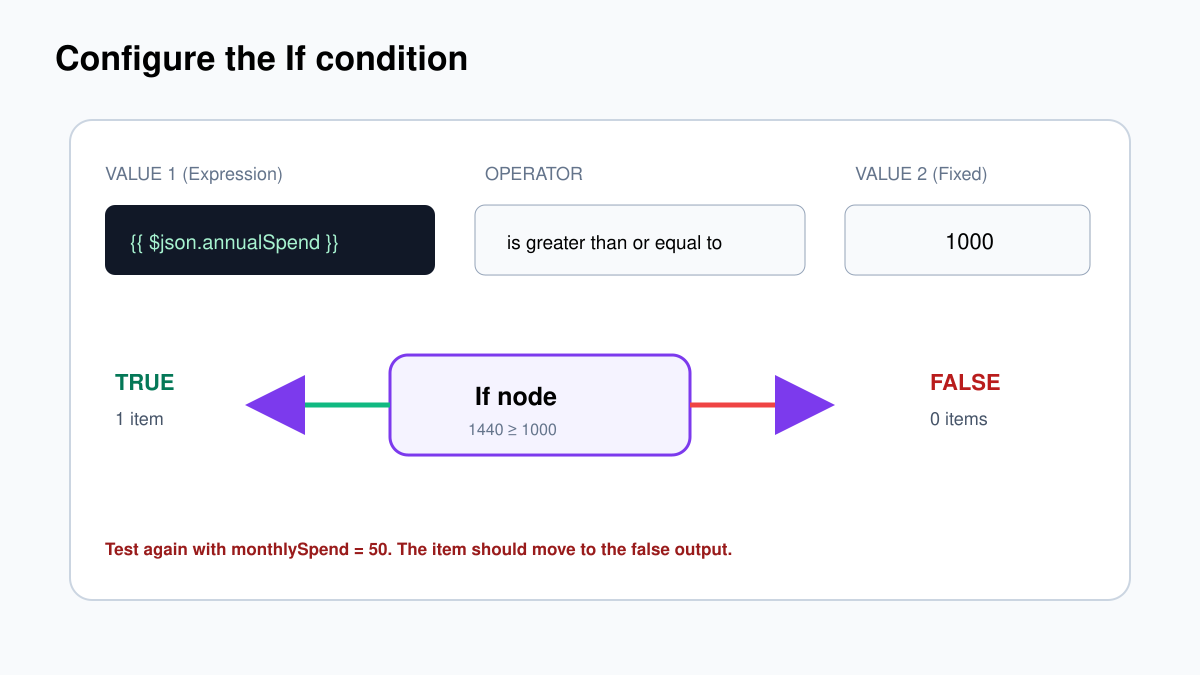

For a workflow that calculates annual spend and routes customers above 1000, the expected result is unambiguous: 120 × 12 = 1440, so one item must leave the true output.

After the happy path, change one variable at a time: remove the email, change monthlySpend to the String "120", set it to zero, use a negative number, and send the same event ID twice. Each test should have a written expected result.

Inspect data at the first wrong node

Open the execution and compare input and output node by node. Stop at the first unexpected value. Later nodes may be failing only because they received bad data.

1. Did the node execute?
2. How many items arrived?
3. What is the exact JSON input?
4. What types do the important fields have?
5. What does each expression resolve to?
6. How many items and which fields left the node?

Use JSON view when a value looks suspicious. Table view can make the number 120 and the string "120" look almost identical. Check capitalization and nesting as well: $json.customer.email is different from $json.email.

Pinning data is helpful while configuring later nodes because it freezes a known input. Unpin it before the final end-to-end test. Otherwise downstream nodes may keep reading your sample while the real trigger appears to run.

Build a small test matrix

You do not need hundreds of cases for every workflow. You do need the cases that exercise each decision and each dangerous failure.

Case	Input	Expected branch	Expected side effect
Happy path	Complete valid record	Normal	One correct update
Missing required field	No eventId	Validation error	No write
Boundary	annualSpend exactly 1000	True for ≥ 1000	One correct update
Wrong type	monthlySpend is text	Quarantine or conversion	No unsafe write
Duplicate	Same eventId twice	Second run stopped	Still one update
Dependency timeout	API unavailable	Retry, then error route	No partial duplicate
Permission failure	Expired/revoked credential	Error route	Actionable alert

Store the matrix beside the workflow description. When you change a node, rerun the cases that touch it plus the happy path and duplicate-event case.

Test webhooks as a caller would

The Webhook node has different test and production URLs. The test URL works while the editor is listening; the production URL works for an active workflow. Verify both deliberately.

A valid request might be:

curl -i -X POST 'https://automation.example.com/webhook/lead-events' \
  -H 'Content-Type: application/json' \
  -H 'X-Webhook-Secret: replace-me' \
  -d '{"eventId":"evt_1042","email":"asha@example.com"}'

Test an invalid request too:

curl -i -X POST 'https://automation.example.com/webhook/lead-events' \
  -H 'Content-Type: application/json' \
  -d '{"email":"asha@example.com"}'

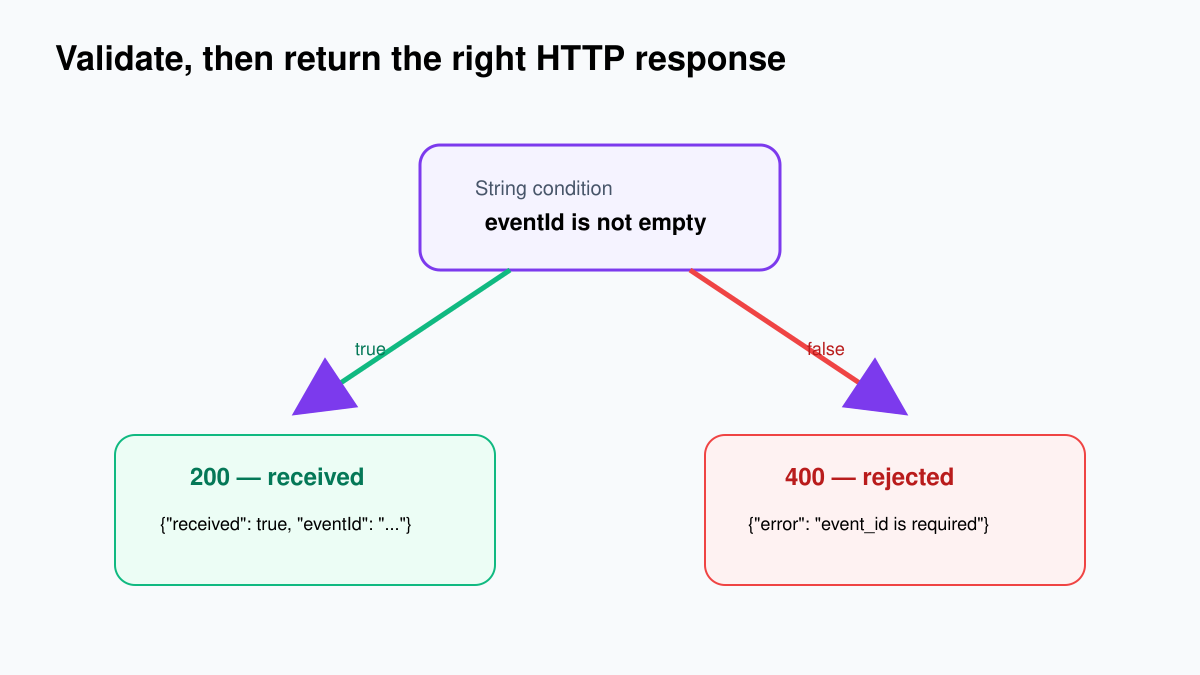

The first should return a documented success status and body. The second should return a controlled client error, not an HTML stack trace or a false 200.

The complete request, response, authentication, and production activation flow is in the n8n webhook tutorial.

Retries and idempotency must be tested together

Retrying a safe read is usually harmless. Retrying “charge card,” “send email,” or “create customer” can duplicate a real-world action. Before enabling retries on a write, decide how a repeated attempt is recognized.

Use a stable key from the source—event ID, message ID, order ID plus version, or another immutable identifier. Store it before the consequential action or use the destination system’s idempotency feature. The test is simple:

1. Send event evt_1042.
2. Confirm one external record is created.
3. Send exactly the same event again.
4. Confirm the second execution records “duplicate” and creates nothing.

A retry policy also needs a limit and a final route. Infinite retries turn a temporary outage into a permanent backlog.

Use an error workflow for operational failures

Create a separate workflow beginning with Error Trigger. Its job is to capture enough context to act, without copying credentials or excessive personal data into a chat message.

A useful alert includes:

• workflow name and ID;
• execution ID and timestamp;
• failed node;
• short error class/message;
• business record or event ID;
• whether a retry is safe;
• link to the runbook or execution for an authorized operator.

Test the error workflow on purpose. Point an HTTP Request node to a controlled failing endpoint or use an invalid test credential, then confirm one actionable alert arrives. Restore the safe configuration after the test.

AI workflows need evaluations, not only executions

An AI node can execute without error and still produce a poor answer. Define a small evaluation set containing normal, ambiguous, hostile, missing-context, and boundary examples.

Dimension	What to check
Structure	Output matches the required schema
Grounding	Important claims are supported by supplied sources
Tool choice	Only a relevant allowed tool was called
Safety	Risky actions route to approval
Isolation	One session cannot see another session’s memory
Consistency	Repeated runs stay within acceptable variation
Cost/latency	Tokens, tool calls, and duration remain inside limits

Write an expected category, required source, allowed tools, and expected review decision for each test. Free-form “looks good” review is too easy to change after seeing the answer.

For structured output, deliberately return a missing field, invalid enum, and confidence above 1. The parser or validation branch must stop the workflow. For agents, include prompt-injection text inside an email or retrieved document. It must not grant new tools, reveal secrets, or bypass approval.

Continue with n8n AI workflow testing and evaluations.

Fast troubleshooting table

Symptom	First place to look	Likely cause
Node did not run	Previous branch and item count	No item reached it
Expression is undefined	Actual input JSON	Wrong path, name, nesting, or branch
If chooses wrong branch	Resolved values and types	String/number mismatch or wrong operator
Webhook works only in editor	URL and active status	Test URL used in production
OAuth callback fails	Public URL configuration	Wrong host, protocol, or redirect URL
429 response	Provider limit and concurrency	Too many calls; add pacing/backoff
401/403 response	Selected credential and scopes	Expired token or insufficient permission
Same action happens twice	Trigger retries and event ID	No idempotency check
AI ignores required shape	Parser connection and schema	Free-form output or unsupported schema feature
Memory mixes users	Session key	Shared or unstable key

The deeper error-by-error guide is Debug n8n workflows: common errors. For retries, duplicate events, and safe write behavior, use n8n error handling, retries, and idempotency.

Definition of done

A workflow is ready for production when:

• every branch has at least one passing test;
• required fields and types are validated near the trigger;
• external writes use stable record IDs;
• duplicate delivery creates no duplicate side effect;
• timeouts and provider errors reach a tested failure route;
• alerts contain an execution and business identifier;
• secrets and unnecessary personal data are absent from logs;
• AI outputs pass schema, grounding, tool, and approval checks;
• the final test uses an active production trigger, not pinned data;
• someone knows how to disable, replay, and recover the workflow.

The goal is not a workflow that never fails. The goal is a workflow that fails visibly, does not corrupt outside systems, and gives a person enough evidence to recover it.
